Iscar

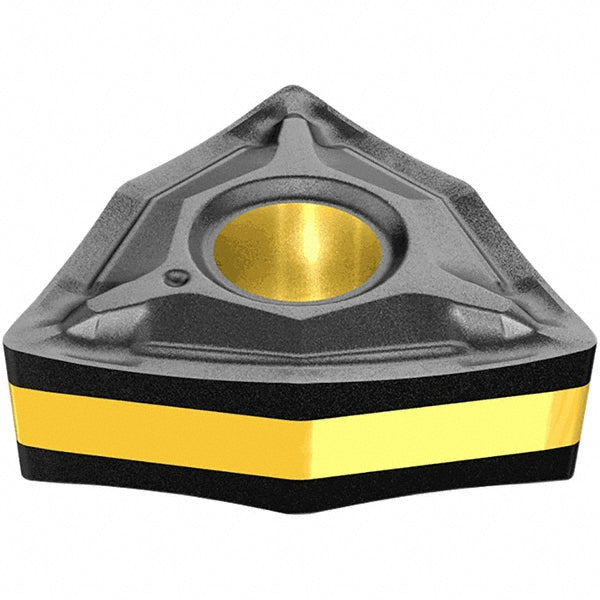

Trigon 3/8" IC Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508233
MFR# 5508233Series Isoturn
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508233 is a solid carbide indexable insert, grade IC8250, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Length range0.0000 - 0.3000
Manufacturer gradeIC8250
Maximum depth of cut0.1378
Relief angle0
Stocking categoryD
Tolerance codeM
