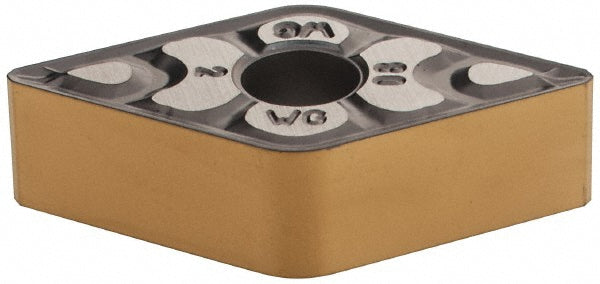

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5508237
MFR# 5508237ISO/ANSI# ISO 13399Series Isoturn
$26.35List $33.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5508237 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerWG
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC807
Material gradeSubmicron
Primary workpiece materialM; P; S
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
