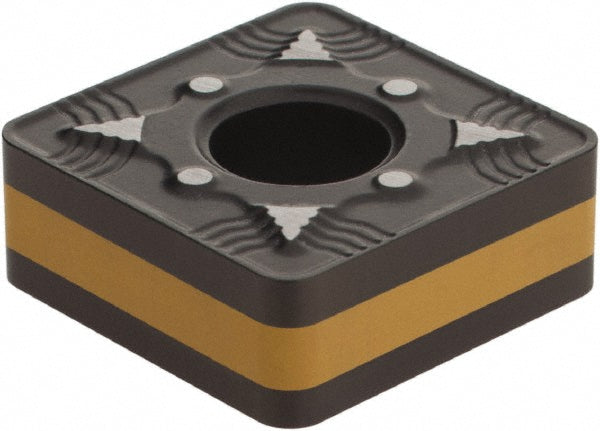

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508270
MFR# 5508270ISO/ANSI# ISO 13399Series Isoturn
$14.58List $18.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508270 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
