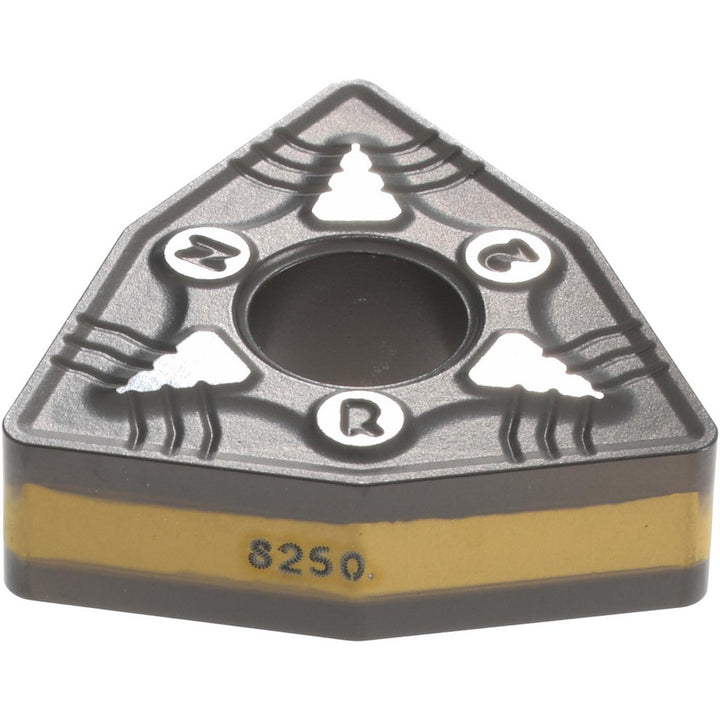

ISO 13399 Carbide Insert, Grade IC8250, AI2O3 - Iscar 5508277

Iscar

ISO 13399 Carbide Insert, Grade IC8250, AI2O3 - Iscar 5508277

MFR# 5508277ISO/ANSI# WNMG080402Series Isoturn

$19.49List $25.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeW - Trigon 80-Deg
GradeIC8250
MaterialCarbide
CoatingAI2O3

Description

The Iscar 5508277 is a ISO 13399 carbide indexable insert, grade IC8250, AI2O3 coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerNR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAI2O3
Coating processCVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle0.5000
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Iso codeISO 13399
Iso insert codeWNMG080402
Iso size code080402
Manufacturer gradeIC8250
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel; Steel
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
