Iscar

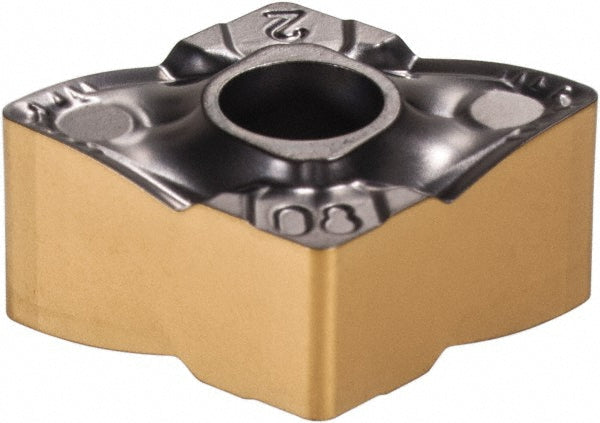

CNMX 452-M4MW Solid Carbide Insert, Grade IC807, TiN - Iscar 5508285
MFR# 5508285ISO/ANSI# CNMX 452-M4MWCat# CNMX 452-M4MWSeries Heliturn LD
$19.11List $24.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5508285 is a CNMX 452-M4MW solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerHMW
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code452
Insert styleCNMX
Insert thickness0.2660
Iso codeCNMX 452-M4MW
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMX 452-M4MW
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.2360
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
