Iscar

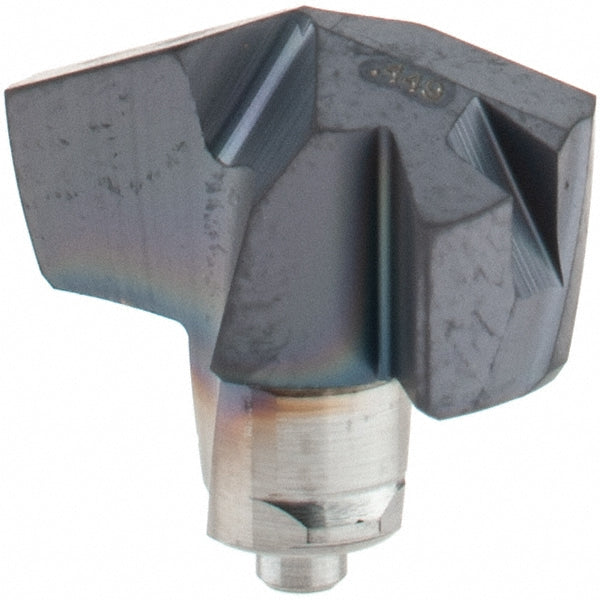

Carbide Insert, Grade IC908, TiAlN - Iscar 5508300
MFR# 5508300Series ICM
$97.06List $124.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508300 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.4490
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1919
Height0.26
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size11
Iso numberICM 114
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2601
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
