Iscar

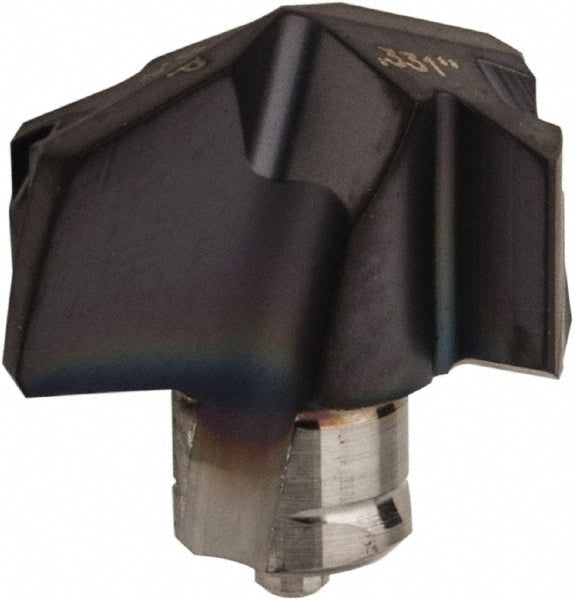

Carbide Insert, Grade IC908, TiAlN - Iscar 5508311
MFR# 5508311Series ICP
$84.44List $108.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508311 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3310
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1627
Height0.213
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size8
Iso numberICP 084
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2127
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICP
Tip materialSolid Carbide
Web thinningWeb Thinned
