Iscar

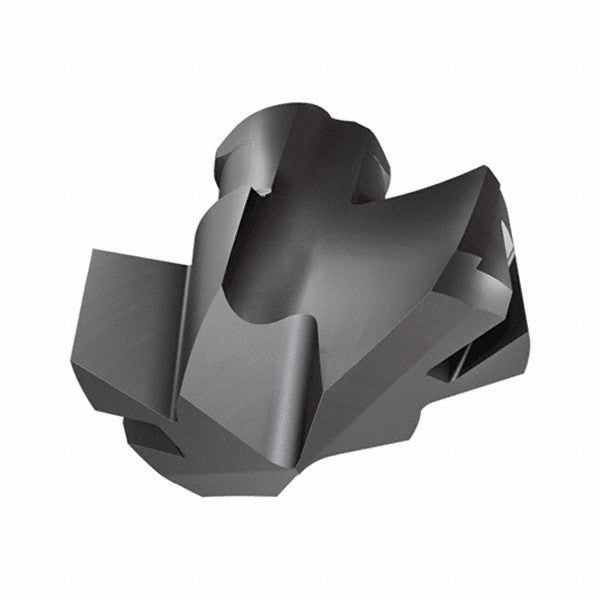

Carbide Insert, Grade IC908, TiAlN - Iscar 5508317
MFR# 5508317Series ICK
$87.33List $109.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508317 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3430
Drill point angle140
Flute typeSpiral
Functional length0.1350
Height0.213
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size8
Iso numberICK 087
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2130
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Spiral typeSlow
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
