Iscar
Carbide Insert, Grade IC908, TiAlN - Iscar 5508320
MFR# 5508320Series ICM
$88.31List $113.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description

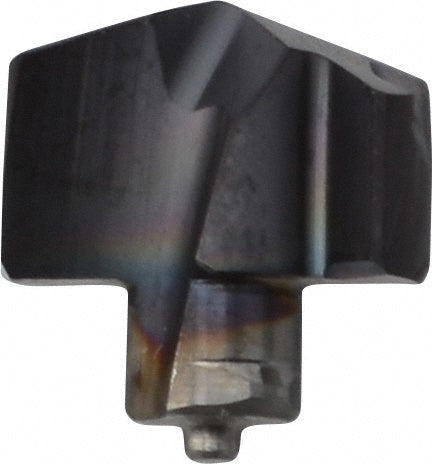

The Iscar 5508320 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3230
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1639
Height0.213
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size8
Iso numberICM 082
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2128
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
