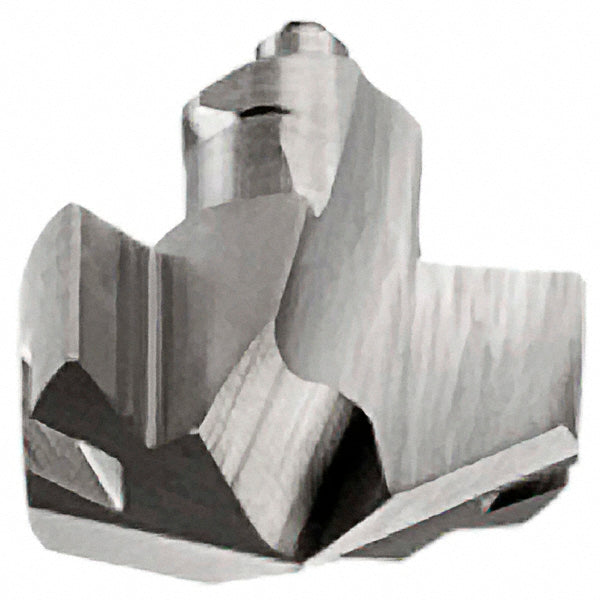

Carbide Insert, Grade IC908, TiAlN - Iscar 5508321
MFR# 5508321Series ICM
$88.31List $113.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508321 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3270
Drill point angle140
Flute typeSpiral
Functional length0.1630
Height0.213
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size8
Iso numberICM 083
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2130
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
