Iscar

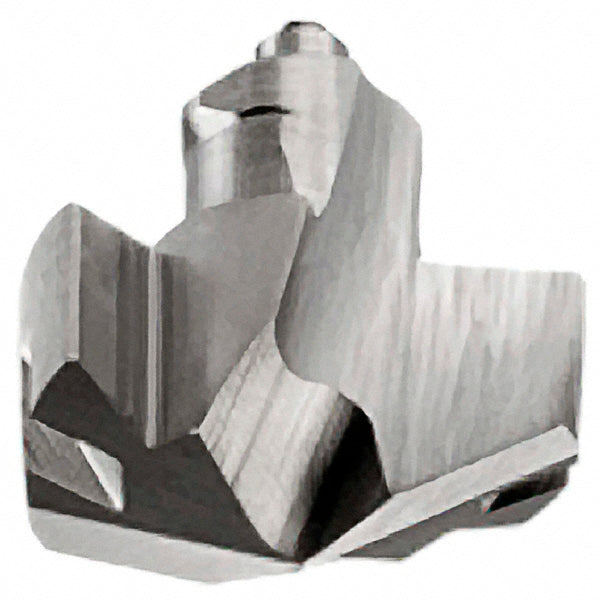

Carbide Insert, Grade IC908, TiAlN - Iscar 5508324
MFR# 5508324Series ICM
$89.87List $113.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508324 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3430
Drill point angle140
Flute typeSpiral
Functional length0.1600
Height0.213
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size8
Iso numberICM 087
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2130
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
