Iscar

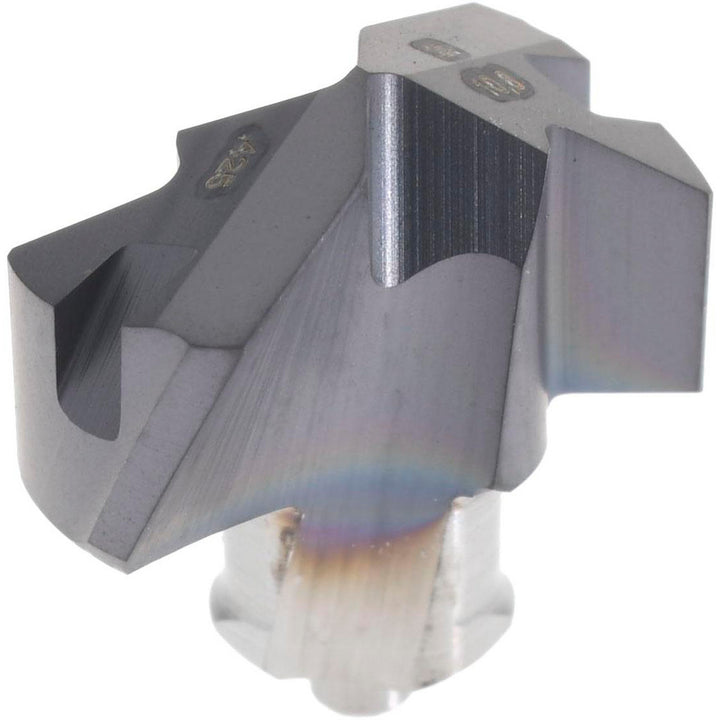

Carbide Insert, Grade IC908, TiAlN - Iscar 5508378
MFR# 5508378Series ICM
$97.06List $124.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508378 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.4250
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1793
Height0.244
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size10
Iso numberICM 108
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2443
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
