Iscar

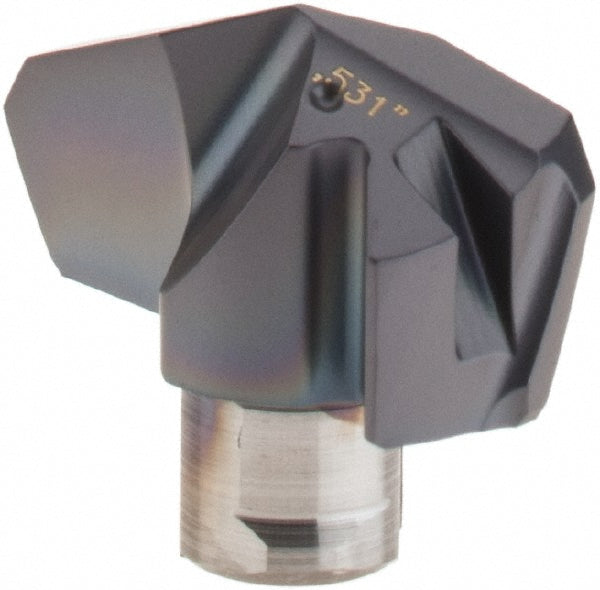

Carbide Insert, Grade IC908, TiAlN - Iscar 5508415
MFR# 5508415Series ICK
$99.73List $125.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508415 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1765
Height0.299
Included angle degree140
Insert geometryK
Insert holding methodClamp
Insert seat size13
Iso numberICK 135
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2994
Point typeStandard
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICK
Tip materialSolid Carbide
Web thinningWeb Thinned
