Iscar

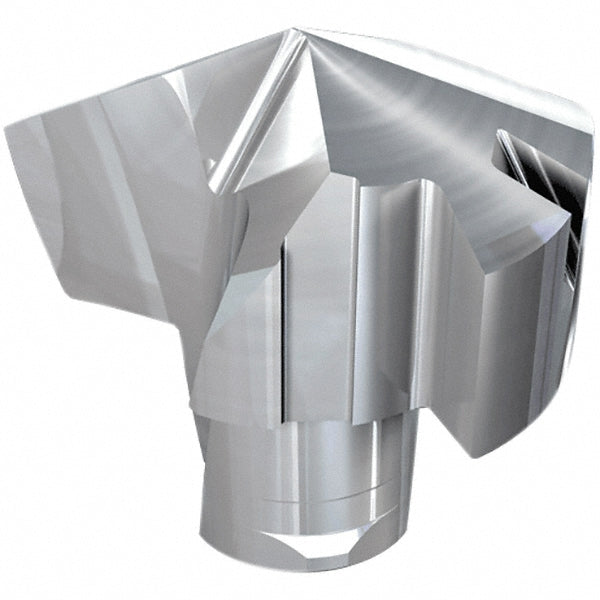

Carbide Insert, Grade IC08 - Iscar 5508419
MFR# 5508419Series ICN
$94.19List $120.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC08
Description
The Iscar 5508419 is a carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
ApplicationsHole Making; Chamfering; Drilling
Coating processBright/Uncoated
Coolant throughNo
Cutting diameter in17/32
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2187
Height0.299
Included angle degree140
Insert geometryN
Insert holding methodClamp
Insert seat size13
Iso numberICN 135
Manufacturer gradeIC08
Material gradeSubmicron
Number of flutes2
Overall length projection0.2995
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Spiral typeRegular Spiral
StandardsISO 13399
StyleICN
Tip materialSolid Carbide
Web thinningWeb Thinned
