Iscar
Carbide Insert, Grade IC908, TiAlN - Iscar 5508449
MFR# 5508449Series ICP
$102.45List $131.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description

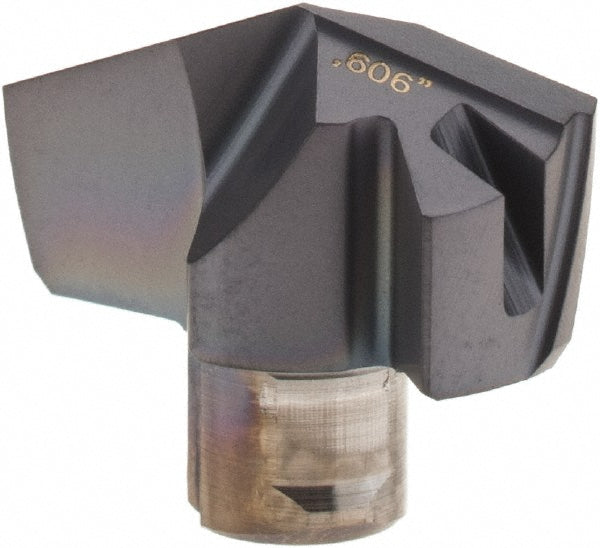

The Iscar 5508449 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6060
Drill point angle140
Flute typeSpiral
Functional length0.2520
Height in11/32
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size15
Iso numberICP 154
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3440
Point typeThinned
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
