Iscar

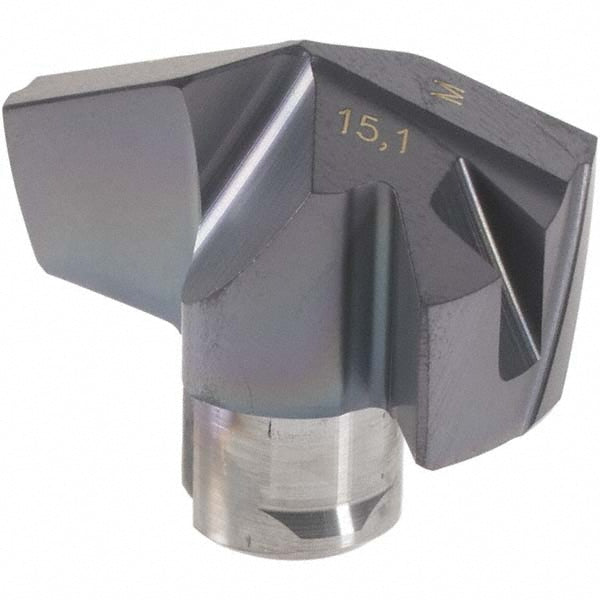

Carbide Insert, Grade IC908, TiAlN - Iscar 5508456
MFR# 5508456Series ICM
$107.06List $137.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508456 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in19/32
Drill point angle140
Flute typeSpiral
Functional length0.2540
Height in11/32
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size15
Iso numberICM 151
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3440
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
