Iscar

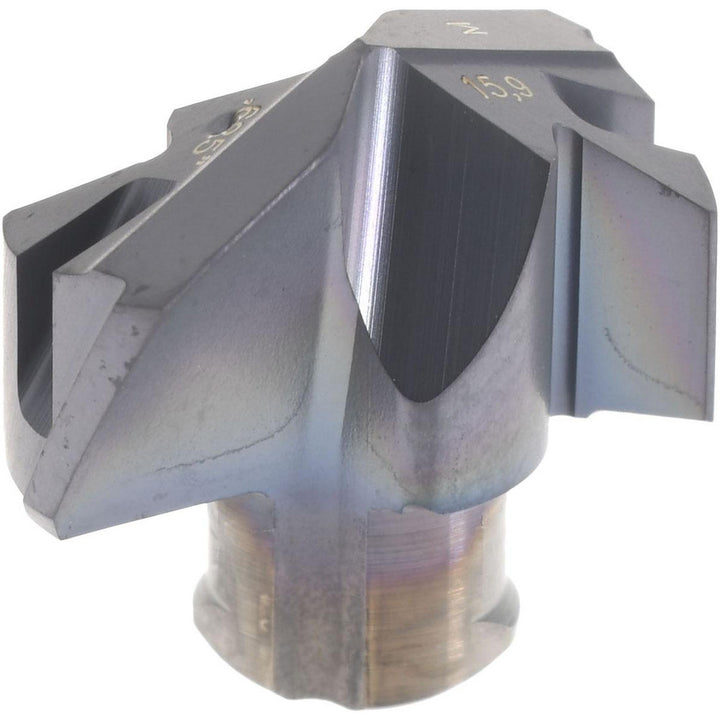

Carbide Insert, Grade IC908, TiAlN - Iscar 5508464
MFR# 5508464Series ICM
$107.06List $137.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508464 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6260
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2486
Height in11/32
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size15
Iso numberICM 159
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3439
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
