Iscar

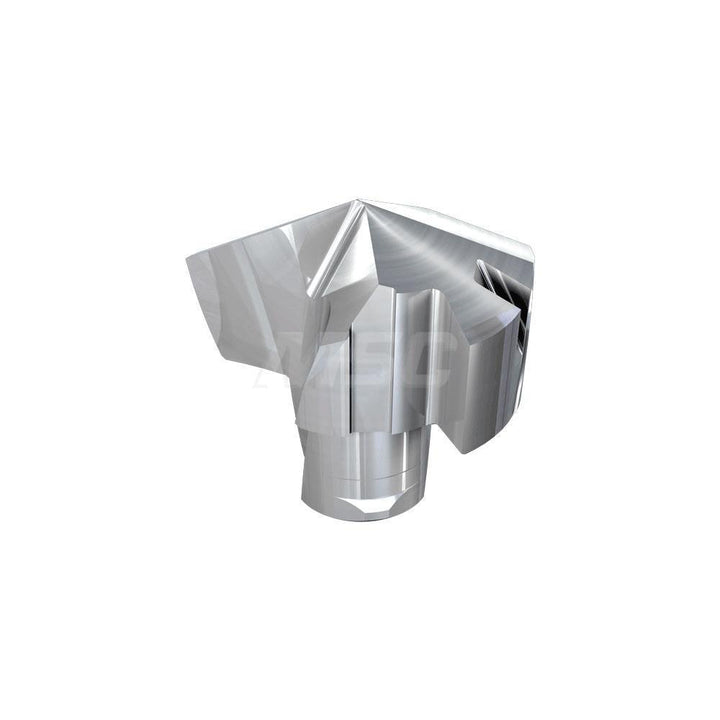

Carbide Insert, Grade IC08 - Iscar 5508469
MFR# 5508469Series ICN
$100.65List $128.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC08
Description
The Iscar 5508469 is a carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
ApplicationsHole Making; Chamfering; Drilling
Coating processBright/Uncoated
Coolant throughNo
Cutting diameter0.5910
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2545
Height in11/32
Included angle degree140
Insert geometryN
Insert holding methodClamp
Insert seat size15
Iso numberICN 150
Manufacturer gradeIC08
Material gradeSubmicron
Number of flutes2
Overall length projection0.3439
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Spiral typeRegular Spiral
StandardsISO 13399
StyleICN
Tip materialSolid Carbide
Web thinningWeb Thinned
