Iscar

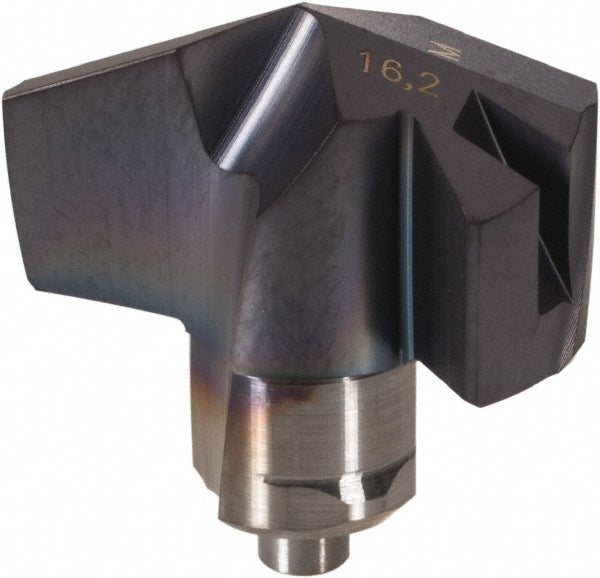

Carbide Insert, Grade IC908, TiAlN - Iscar 5508480
MFR# 5508480Series ICM
$117.05List $149.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508480 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6380
Drill point angle140
Flute typeSpiral
Functional length0.2690
Height0.3660
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size16
Iso numberICM 162
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3660
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
