Iscar

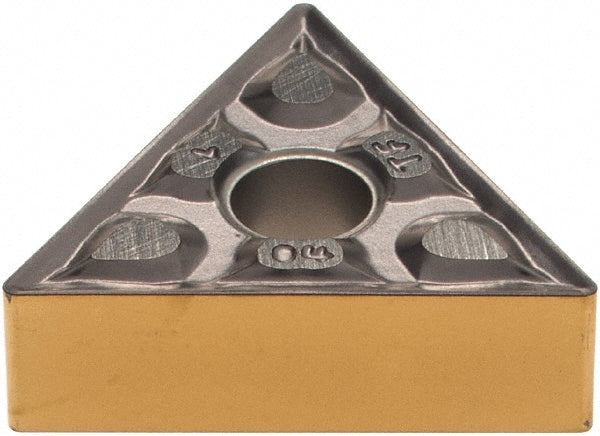

TNMG 331-TF Carbide Insert, Grade IC807, TiN - Iscar 5508493
MFR# 5508493ISO/ANSI# TNMG 331-TFCat# TNMG 331-TFSeries Isoturn
$13.33List $17.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC807
MaterialCarbide
CoatingTiN
Description
The Iscar 5508493 is a TNMG 331-TF carbide indexable insert, grade IC807, TiN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 331-TF
Length range0.6500 - 0.7000
Manufacturers catalog numberTNMG 331-TF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use toolYes
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
