Iscar

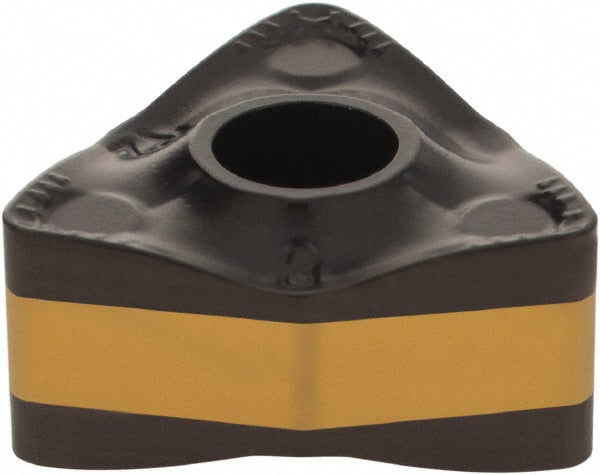

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508506
MFR# 5508506ISO/ANSI# ISO 13399Series Heliturn
$22.07List $28.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508506 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerM4PW
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code453
Insert styleWNMX
Insert thickness0.2670
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.1970
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
