Iscar

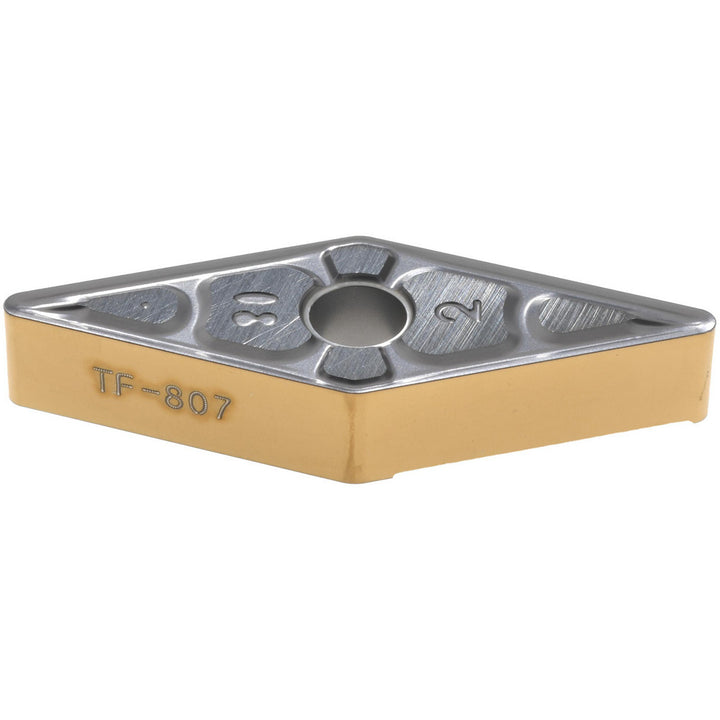

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5508508
MFR# 5508508ISO/ANSI# VNMG160408Series Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5508508 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeVNMG160408
Iso size code160408
Length range0.6500 - 0.7000
Manufacturer gradeIC807
Maximum depth of cut0.1378
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
