Iscar
ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508537
MFR# 5508537ISO/ANSI# ISO 13399Series Heliturn
$27.75List $35.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description

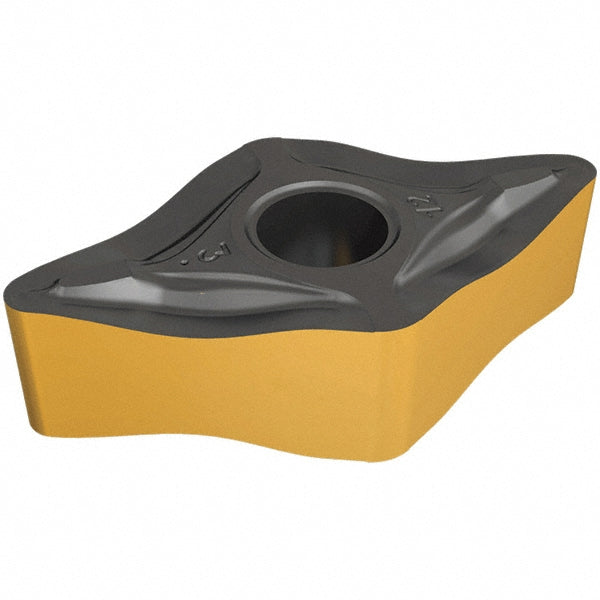

The Iscar 5508537 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code443
Insert styleDNMX
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.2165
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
