Iscar

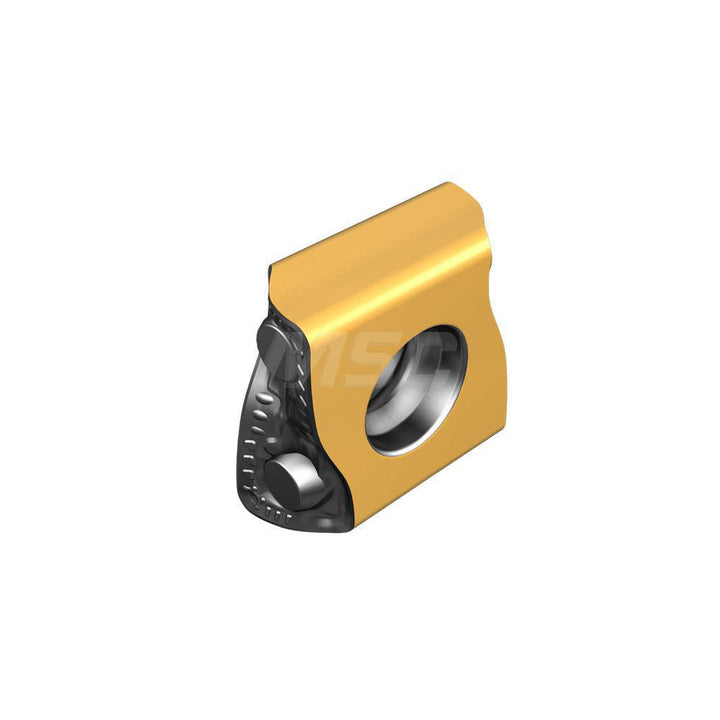

ISO 13399 Carbide Insert, Grade IC8350, TiCN - Iscar 5508552
MFR# 5508552ISO/ANSI# LNMX150616Series Heliturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeL - Rectangle
GradeIC8350
MaterialCarbide
CoatingTiCN
Description
The Iscar 5508552 is a ISO 13399 carbide indexable insert, grade IC8350, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeLNMX
Chip breakerHT
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - Moderate Wear-Resistance and Toughness
Included angle90
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialCarbide
Insert shapeL - Rectangle
Insert size code150616
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Iso insert codeLNMX150616
Iso size code150616
Length range0.5000 - 0.6000
Manufacturer gradeIC8350
Maximum depth of cut (mm)8.00
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
