Iscar

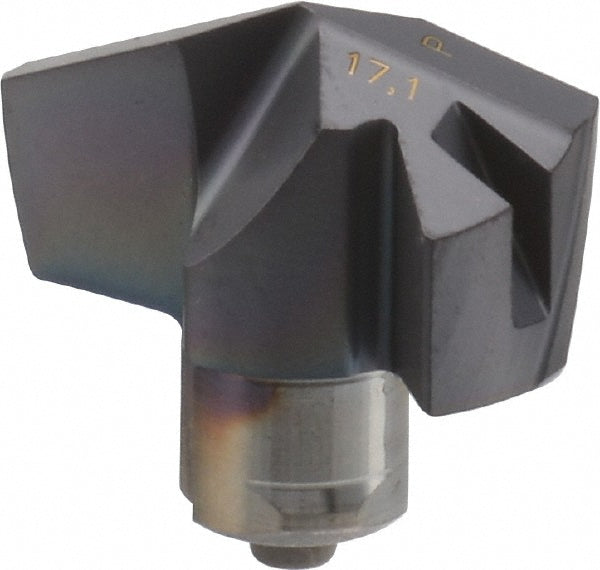

Carbide Insert, Grade IC908, TiAlN - Iscar 5508572
MFR# 5508572Series ICP
$111.58List $142.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508572 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6730
Drill point angle140
Flute typeSpiral
Functional length0.2870
Height0.3900
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size17
Iso numberICP 171
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3900
Point typeThinned
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
