Iscar

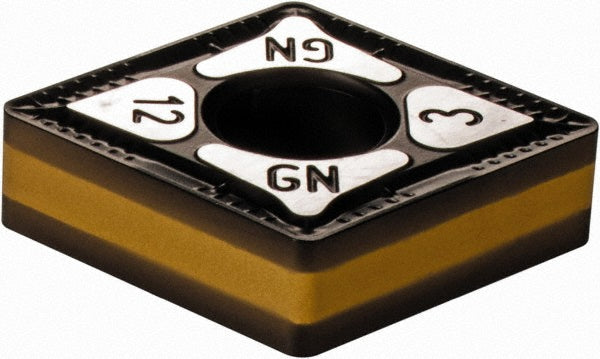

CNMG 643-GN Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508633
MFR# 5508633ISO/ANSI# CNMG 643-GNCat# CNMG 643-GNSeries Isoturn
$41.02List $51.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508633 is a CNMG 643-GN solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643-GN
Length range0.7000 - 10.0000
Manufacturers catalog numberCNMG 643-GN
Manufacturer gradeIC8150
Maximum depth of cut0.3140
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
