Iscar

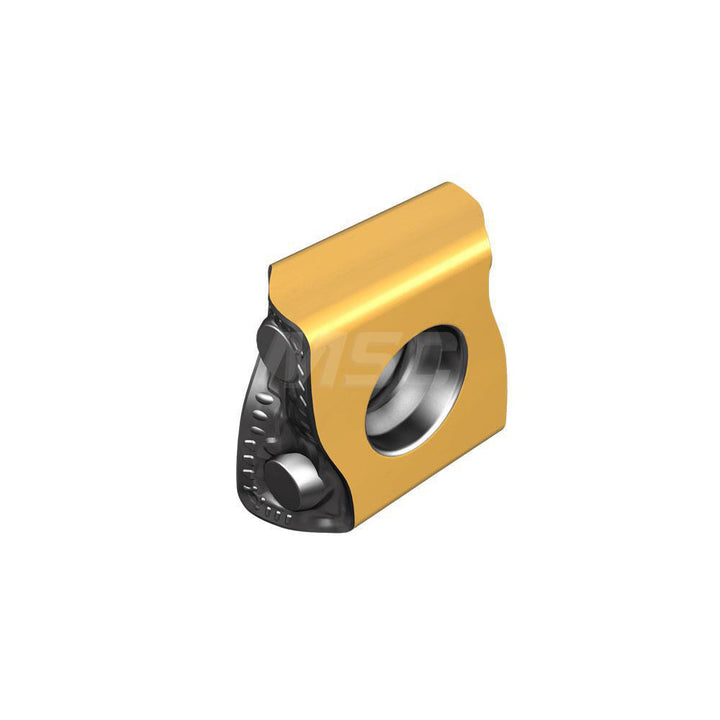

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508648
MFR# 5508648ISO/ANSI# ISO 13399Series Heliturn
$32.69List $41.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508648 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting directionLeft Hand
Included angle90.0
Insert handLeft Hand
Insert holding methodScrew
Insert length0.8660
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code221016
Insert styleLNMX
Insert thickness0.7874
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC8150
Maximum depth of cut0.5910
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width0.3700
