Iscar

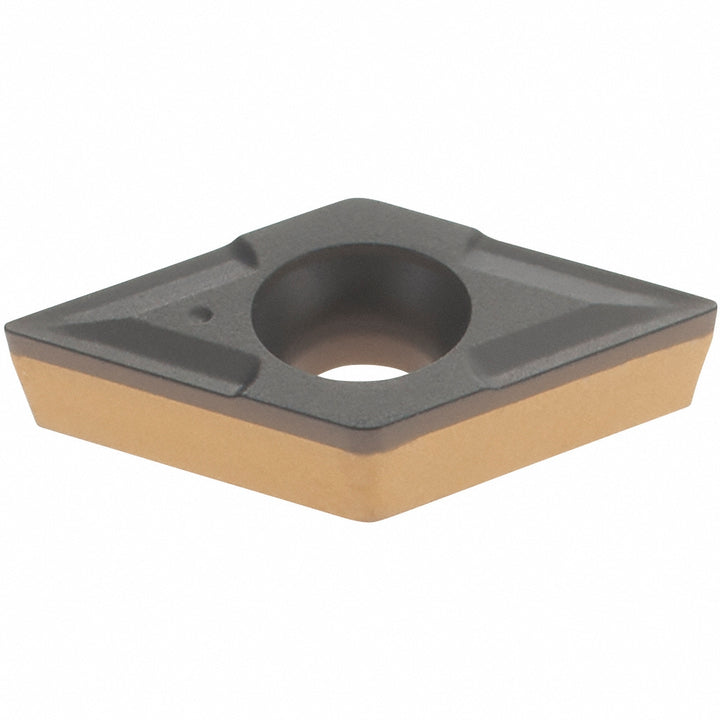

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5508690
MFR# 5508690ISO/ANSI# ISO 13399Series Isoturn
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508690 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3030
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code20
Insert styleDCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC8150
Maximum depth of cut0.0787
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
