Iscar

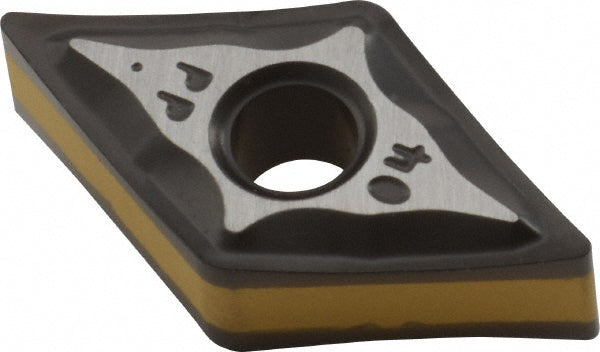

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508710
MFR# 5508710ISO/ANSI# ISO 13399Series Isoturn
$20.47List $25.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508710 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0157
Included angle55.0
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
RakePositive
StandardsISO 13399
Tolerance codeM
