Iscar

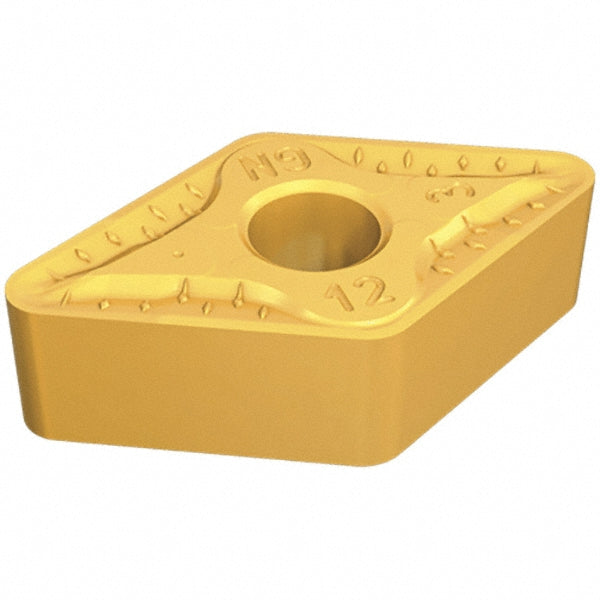

ISO 13399 Solid Carbide Insert, Grade IC5010, TiCN - Iscar 5508752
MFR# 5508752ISO/ANSI# ISO 13399Series Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC5010
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508752 is a ISO 13399 solid carbide indexable insert, grade IC5010, TiCN coated. Suited for cast iron.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC5010
Maximum depth of cut0.1970
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
