Iscar

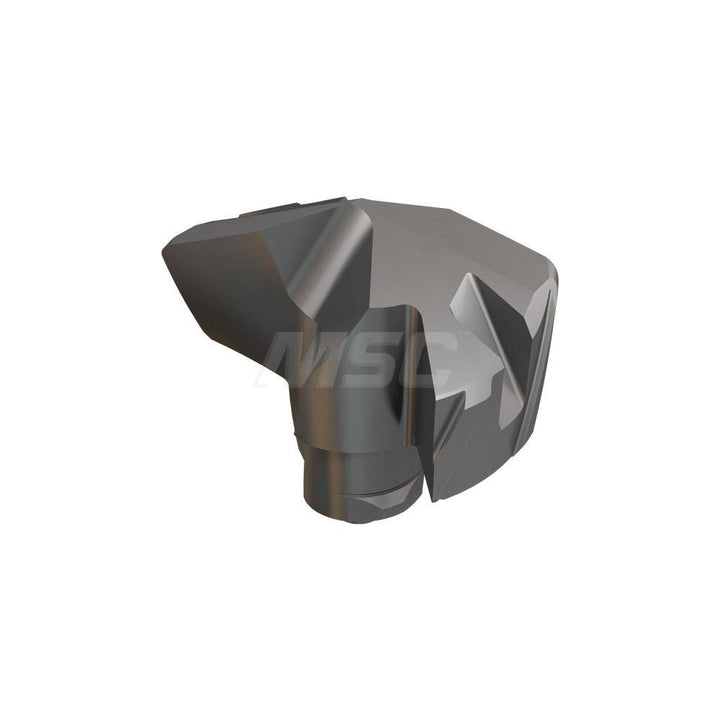

Carbide Insert, Grade IC908, TiAlN - Iscar 5508771
MFR# 5508771Series ICP-2M
$95.04List $119.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508771 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3150
Drill point angle140
Flute typeSpiral
Functional length0.1550
Height0.2130
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size8
Iso numberICP 080-2M
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2130
Point typeDouble Margin
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDouble Margin
Tip materialSolid Carbide
Web thinningWeb Thinned
