Iscar
Carbide Insert, Grade IC908, TiAlN - Iscar 5508787
MFR# 5508787Series ICP-2M
$102.45List $131.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description

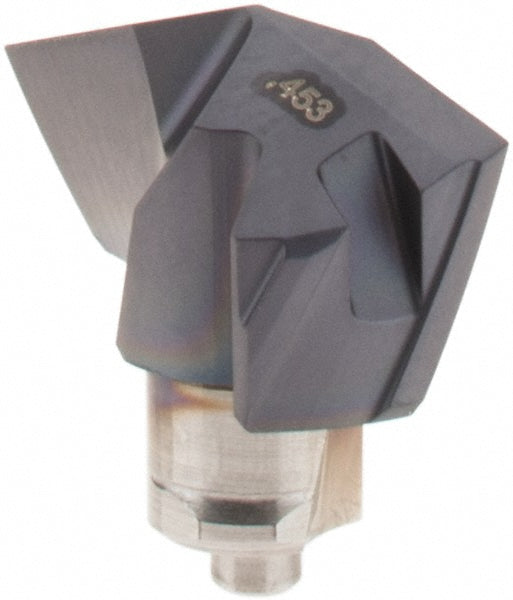

The Iscar 5508787 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in29/64
Drill point angle140
Flute typeSpiral
Functional length0.1780
Height0.2600
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size11
Iso numberICP 115-2M
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2600
Point typeDouble Margin
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDouble Margin
Tip materialSolid Carbide
Web thinningWeb Thinned
