Iscar

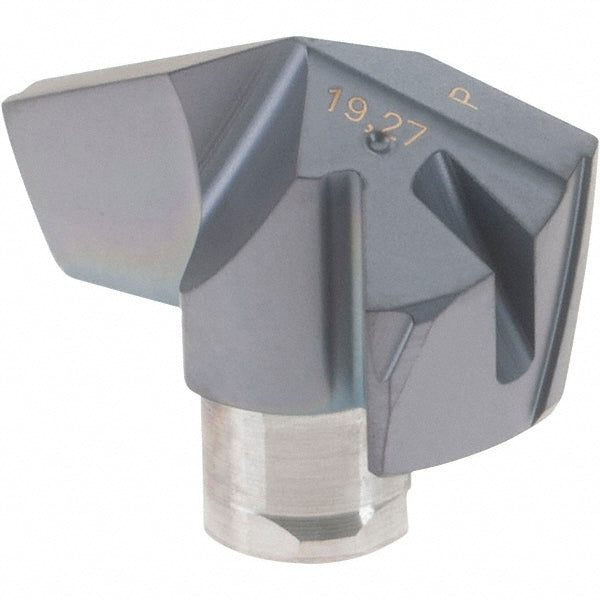

Carbide Insert, Grade IC908, TiAlN - Iscar 5508793
MFR# 5508793Series ICP-2M
$142.43List $182.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5508793 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7590
Drill point angle140
Flute typeSpiral
Functional length0.2950
Height0.4330
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size19
Iso numberICP 1927-2M
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4330
Point typeDouble Margin
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDouble Margin
Tip materialSolid Carbide
Web thinningWeb Thinned
