Iscar

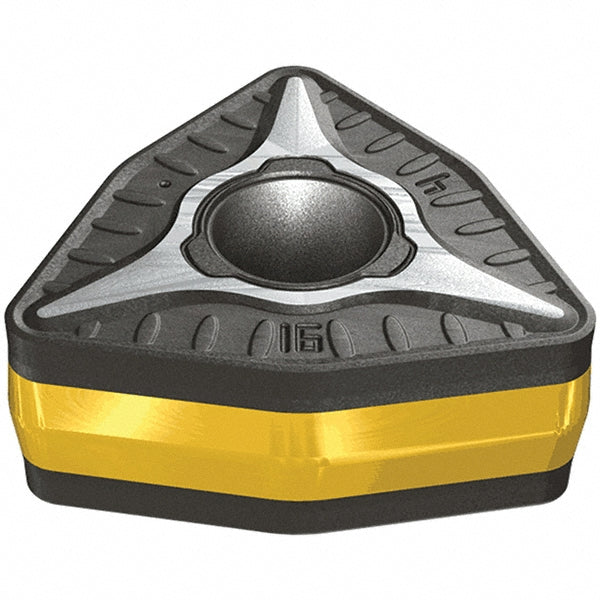

WOMG 554-T3P-IQ Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5508895
MFR# 5508895ISO/ANSI# WOMG 554-T3P-IQSeries Isoturn
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTrigon
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5508895 is a WOMG 554-T3P-IQ solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT3P
Clearance codeO
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Full radiusNo
Included angle80.0
Inscribed circle in5/8
Insert holding methodLever Lock
Insert length0.4280
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code554
Insert styleWOMG
Insert thickness in5/16
Iso codeWOMG 554-T3P-IQ
Length range0.4000 - 0.5000
Manufacturer gradeIC8250
Maximum depth of cut0.1100
Primary workpiece materialStainless Steel; Steel
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
