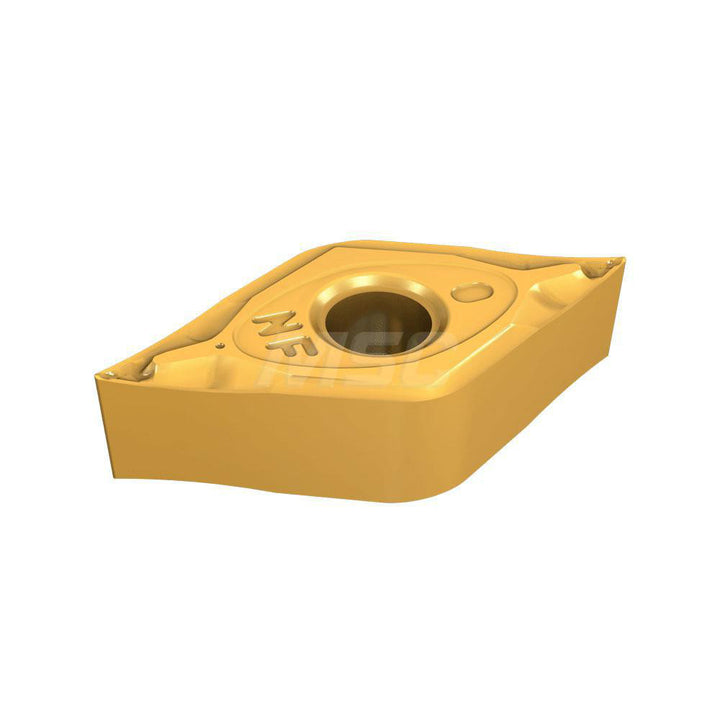

DNMG 432-NF Carbide Insert, Grade IC8250, TiCN - Iscar 5508927

Iscar

DNMG 432-NF Carbide Insert, Grade IC8250, TiCN - Iscar 5508927

MFR# 5508927ISO/ANSI# DNMG150408Cat# DNMG 432-NFSeries Isoturn

$24.17List $31.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5508927 is a DNMG 432-NF carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-NF
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 432-NF
Manufacturer gradeIC8250
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
