Iscar

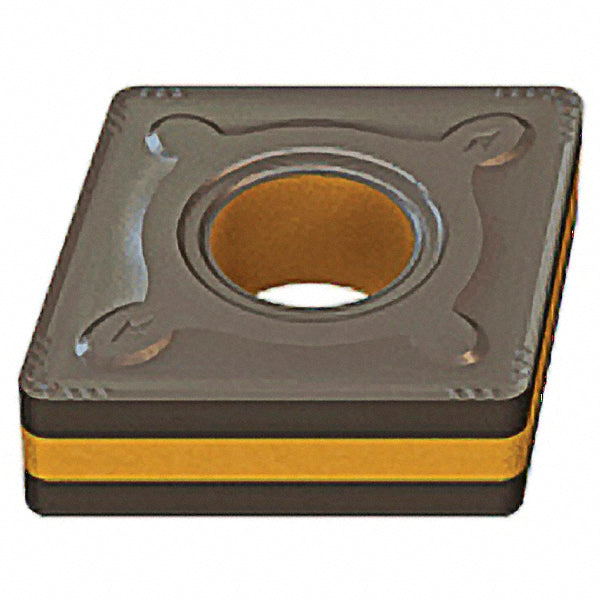

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5508942
MFR# 5508942ISO/ANSI# CNMG160612Series Isoturn
$28.89List $36.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5508942 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.3937
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
