Iscar

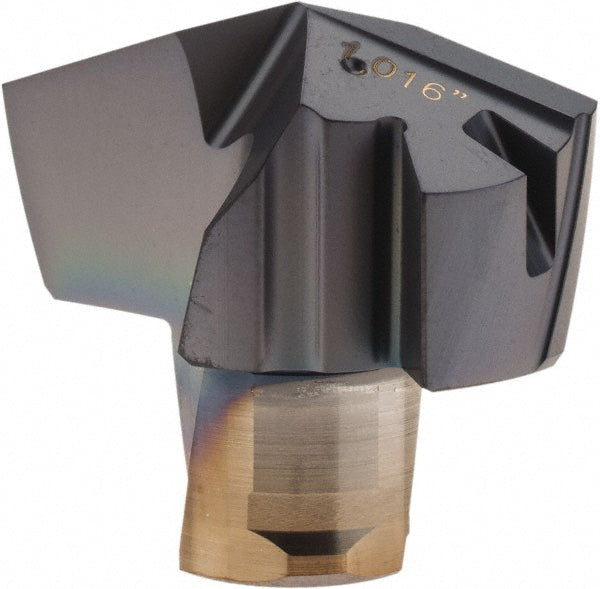

Carbide Insert, Grade IC908, TiAlN - Iscar 5509035
MFR# 5509035Series ICP
$165.15List $211.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509035 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1-1/64
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4157
Height0.571
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size25
Iso numberICP 258
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5713
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICP
Tip materialSolid Carbide
Web thinningWeb Thinned
