Iscar

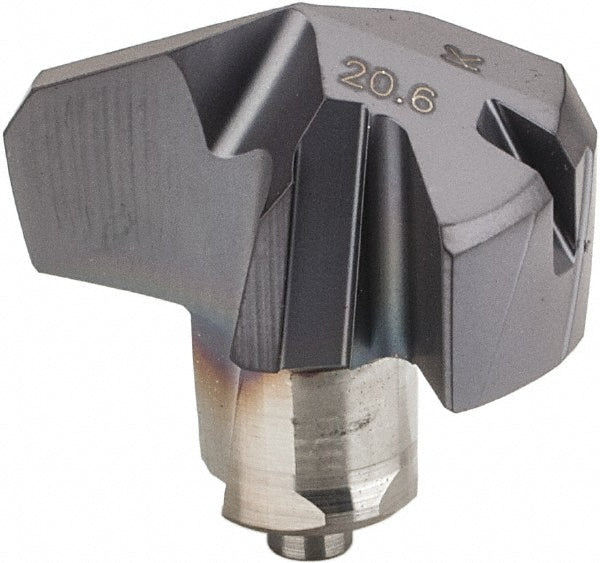

Carbide Insert, Grade IC908, TiAlN - Iscar 5509104
MFR# 5509104Series ICK
$153.28List $192.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509104 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.8110
Drill point angle140
Flute typeSpiral
Functional length0.2680
Height0.4570
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size20
Iso numberICK 206
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4570
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
