Iscar

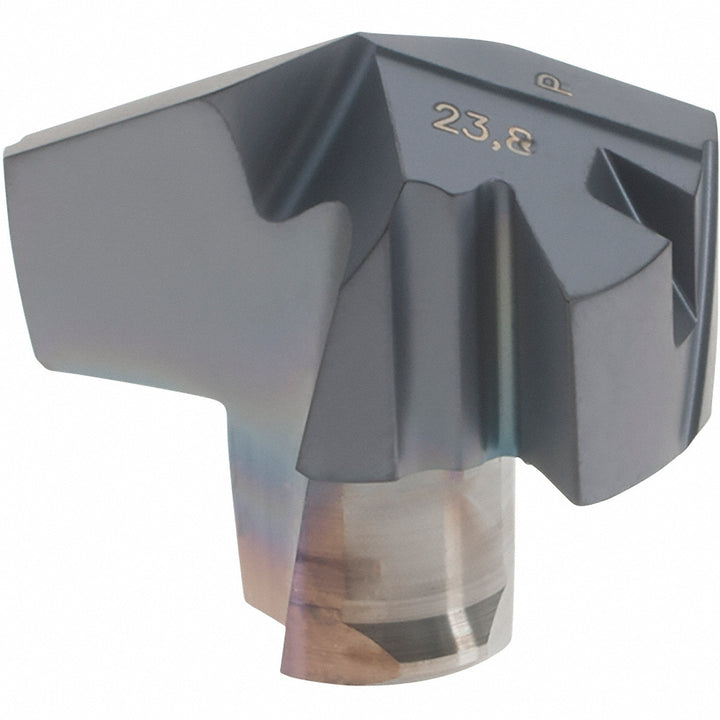

Carbide Insert, Grade IC908, TiAlN - Iscar 5509154
MFR# 5509154Series ICP
$152.34List $195.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509154 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9370
Drill point angle140
Flute typeSpiral
Functional length0.3830
Height0.5250
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size23
Iso numberICP 238
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5250
Point typeThinned
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
