Iscar

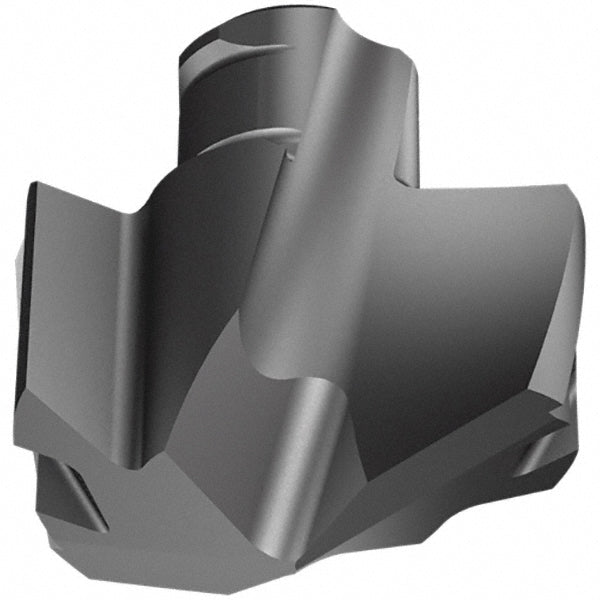

Carbide Insert, Grade IC908, TiAlN - Iscar 5509301
MFR# 5509301Series ICP
$84.44List $108.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509301 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.2720
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1202
Height0.169
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size6.5
Iso numberICP 069
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.1695
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICP
Tip materialSolid Carbide
Web thinningWeb Thinned
