Iscar

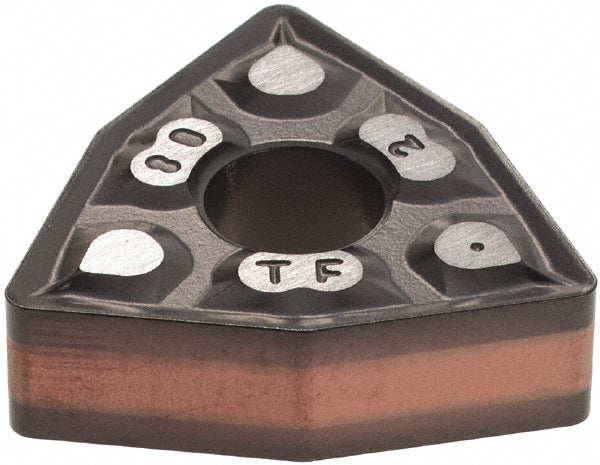

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5509365
MFR# 5509365ISO/ANSI# WNMG080402Series Isoturn
$16.69List $21.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC6015
MaterialCarbide
CoatingTiCN
Description
The Iscar 5509365 is a ISO 13399 carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturer gradeIC6015
Maximum depth of cut0.1575
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
