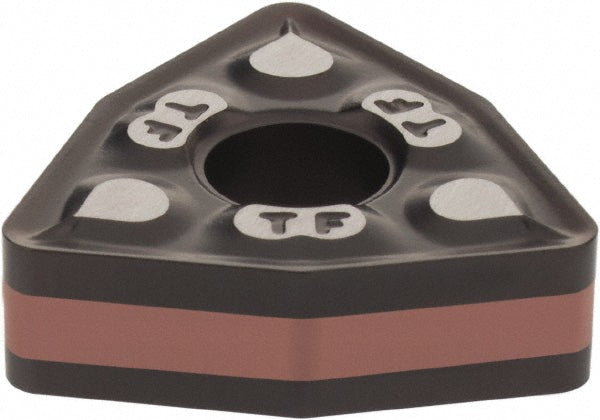

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5509368

Iscar

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5509368

MFR# 5509368ISO/ANSI# WNMG080412Series Isoturn

$19.49List $25.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC6015
MaterialCarbide
CoatingTiCN

Description

The Iscar 5509368 is a ISO 13399 carbide indexable insert, grade IC6015, TiCN coated.

Specifications

Ansi insert codeWNMG433
Ansi size code433
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG080412
Iso size code080412
Length range0.3000 - 0.4000
Manufacturer gradeIC6015
Maximum depth of cut0.1770
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
