Iscar

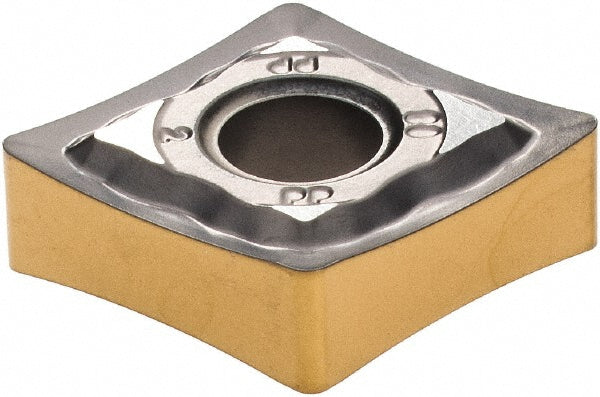

CNMG 432-PP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5509497
MFR# 5509497ISO/ANSI# CNMG 432-PPSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5509497 is a CNMG 432-PP solid carbide indexable insert, grade IC830, AlTiN coated.
Specifications
Chip breakerPP
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-PP
Length range0.5000 - 0.6000
Manufacturer gradeIC830
Maximum depth of cut0.1570
Multi use applicationFacing
Multi use toolYes
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
