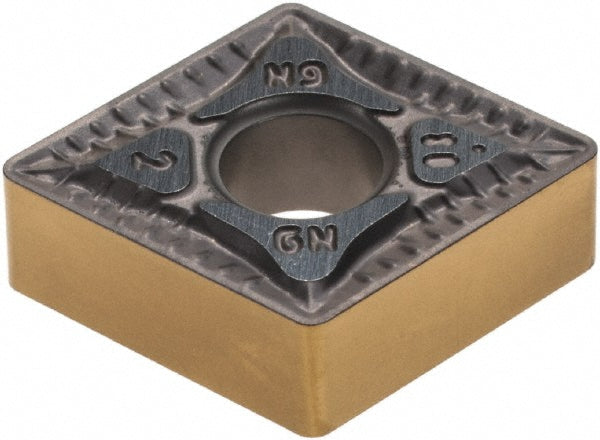

CNMG 432-GN Carbide Insert, Grade IC830, AlTiN - Iscar 5509498
MFR# 5509498ISO/ANSI# CNMG 432-GNSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 5509498 is a CNMG 432-GN carbide indexable insert, grade IC830, AlTiN coated. Suited for universal.
Specifications
Chip breakerGN
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-GN
Length range0.5000 - 0.6000
Manufacturer gradeIC830
Maximum depth of cut0.1770
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeM
