Iscar

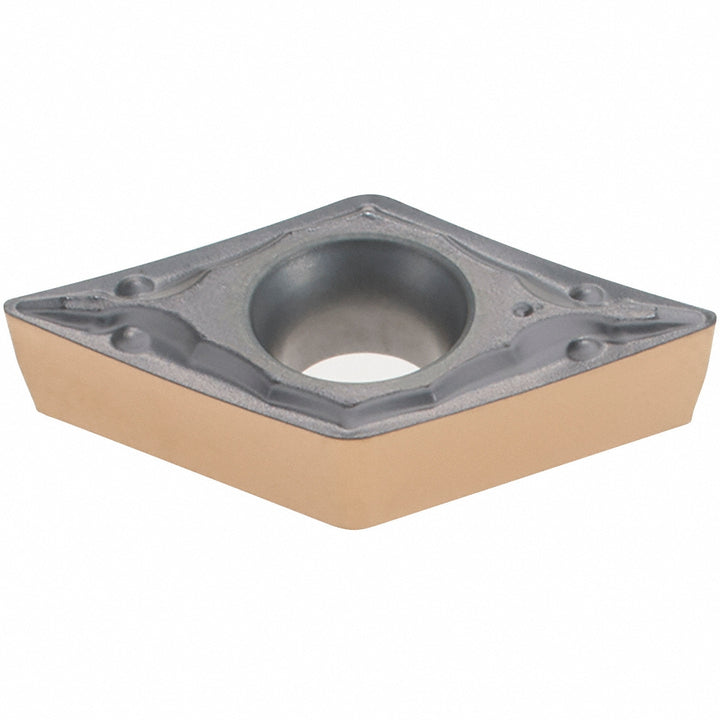

DCMT 3-1-PF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5509499
MFR# 5509499ISO/ANSI# DCMT 3-1-PFSeries Isoturn
$19.65List $25.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5509499 is a DCMT 3-1-PF solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy.
Specifications
Chip breakerPF
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 3-1-PF
Length range0.4000 - 0.5000
Manufacturer gradeIC830
Maximum depth of cut0.1180
Primary workpiece materialSuperalloy
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
