Iscar

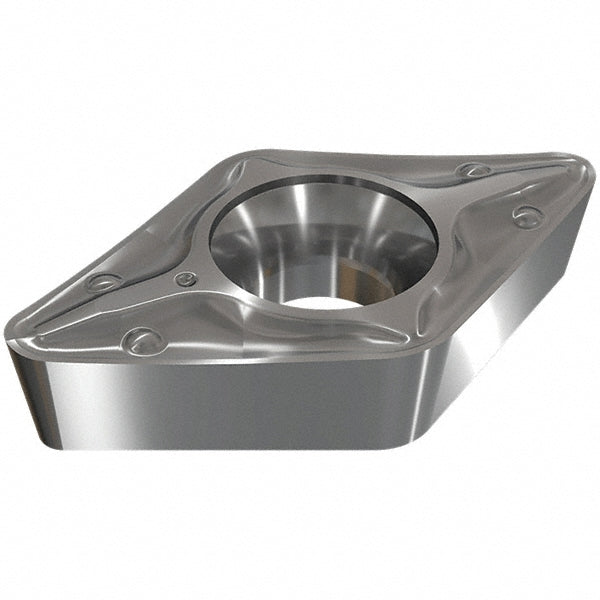

ISO 13399 Carbide Insert, Grade IC830, TiAlN - Iscar 5509503
MFR# 5509503ISO/ANSI# ISO 13399Series Isoturn
$19.65List $25.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5509503 is a ISO 13399 carbide indexable insert, grade IC830, TiAlN coated. Suited for universal.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Hole diameter0.1730
Included angle55
Insert materialCarbide
Insert shapeDiamond
Insert size code3-2
Insert styleDCMT
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
