Iscar

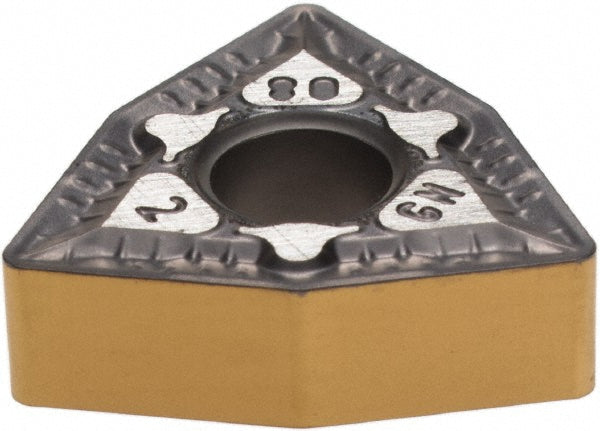

WNMG 432-GN Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5509504
MFR# 5509504ISO/ANSI# WNMG 432-GNSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5509504 is a WNMG 432-GN solid carbide indexable insert, grade IC830, AlTiN coated. Suited for universal.
Specifications
Chip breakerGN
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432-GN
Length range0.3000 - 0.4000
Manufacturer gradeIC830
Maximum depth of cut0.1770
Primary workpiece materialUniversal
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
