Iscar

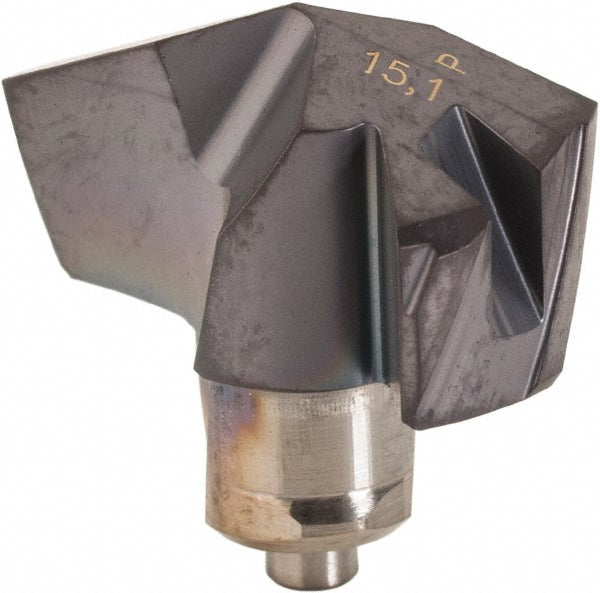

Carbide Insert, Grade IC908, TiAlN - Iscar 5509605
MFR# 5509605Series ICP-2M
$114.31List $146.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509605 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in19/32
Drill point angle140
Flute typeSpiral
Functional length0.2350
Height in11/32
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size15
Iso numberICP 151-2M
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3440
Point typeDouble Margin
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDouble Margin
Tip materialSolid Carbide
Web thinningWeb Thinned
