Iscar

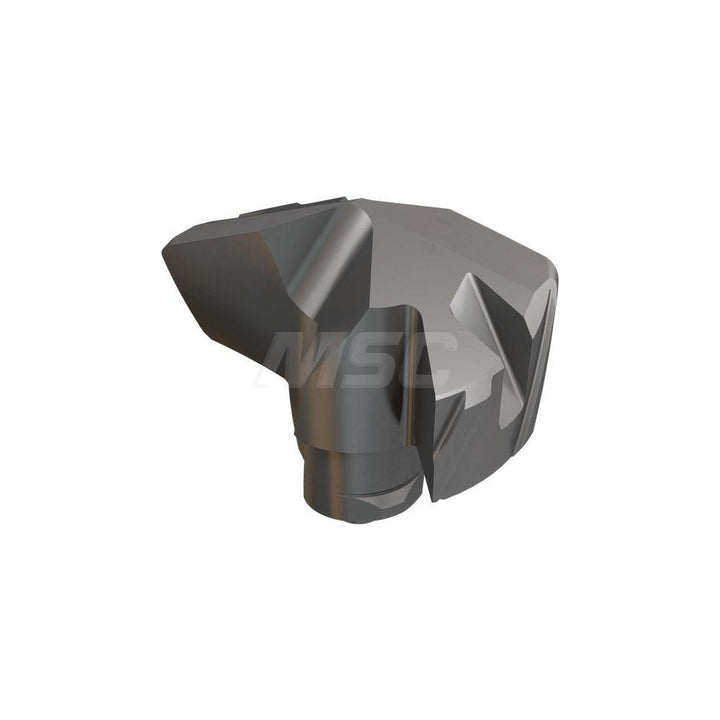

Carbide Insert, Grade IC908, TiAlN - Iscar 5509640
MFR# 5509640Series ICP-2M
$144.95List $182.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509640 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7800
Drill point angle140
Flute typeSpiral
Functional length0.2910
Height0.4330
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size19
Iso numberICP 198-2M
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4330
Point typeDouble Margin
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDouble Margin
Tip materialSolid Carbide
Web thinningWeb Thinned
