Iscar

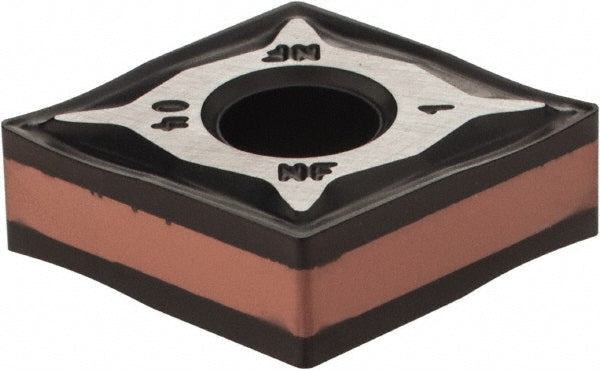

ISO 13399 Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5509696
MFR# 5509696ISO/ANSI# ISO 13399Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5509696 is a ISO 13399 solid carbide indexable insert, grade IC6015, TiCN coated. Suited for m.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC6015
Maximum depth of cut0.1380
Primary workpiece materialM
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
